Injection Moulding Grades
HD5740UA
HD 5740 UA is a high-density polyethylenecopolymer grade with a narrow molecular weight distribution, specially developed for
Applications:
Large dustbins and pails
Pallet boxes
Fish crateTechnical moulding

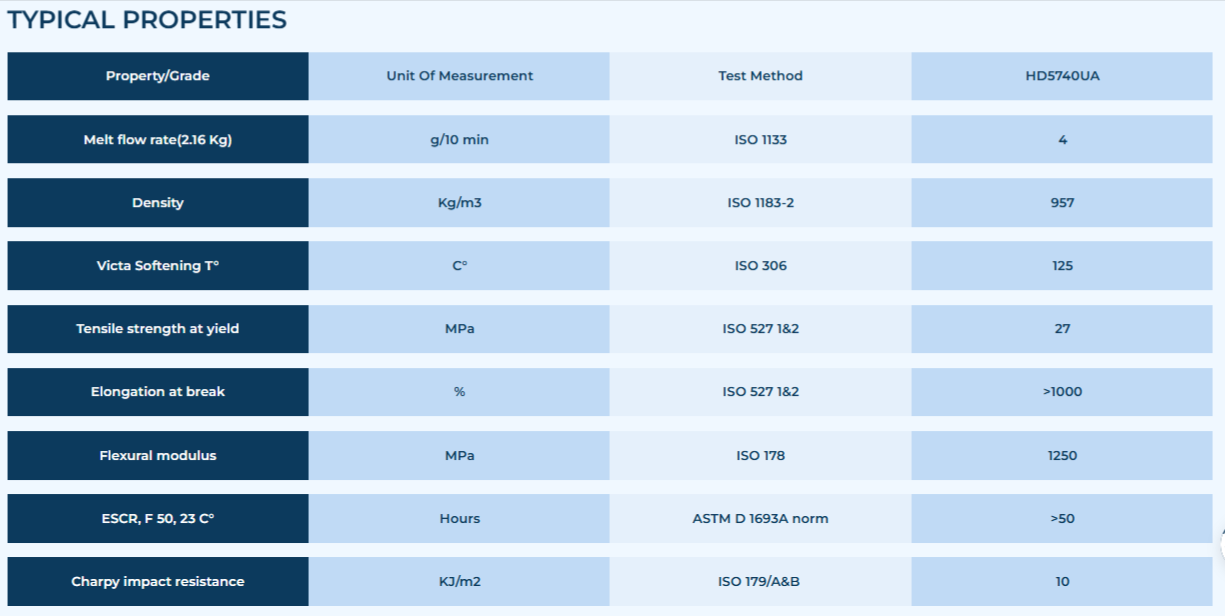

Typical Properties
TYPICAL PROPERTIES
Property/Grade
Unit Of Measurement
Test Method
HD5740UA
Melt flow rate(2.16 Kg)
g/10 min
ISO 1133
4
Density
Kg/m3
ISO 1183-2
957
Victa Softening T°
C°
ISO 306
125
Tensile strength at yield
MPa
ISO 527 1&2
27
Elongation at break
%
ISO 527 1&2
>1000
Flexural modulus
MPa
ISO 178
1250
ESCR, F 50, 23 C°
Hours
ASTM D 1693A norm
>50
Charpy impact resistance
KJ/m2
ISO 179/A&B
10
HD6070UA
HD 6070 UA is a high-density polyethylene grade with a narrow molecular weight distribution, suitable for a wide range of injection moulding applications
HD 6070 UA has the following characteristics:
Easy processing
High rigidity
Good impact strength
High warpage resistance
Applications:
Crates
Boxes
Seats
Pallets

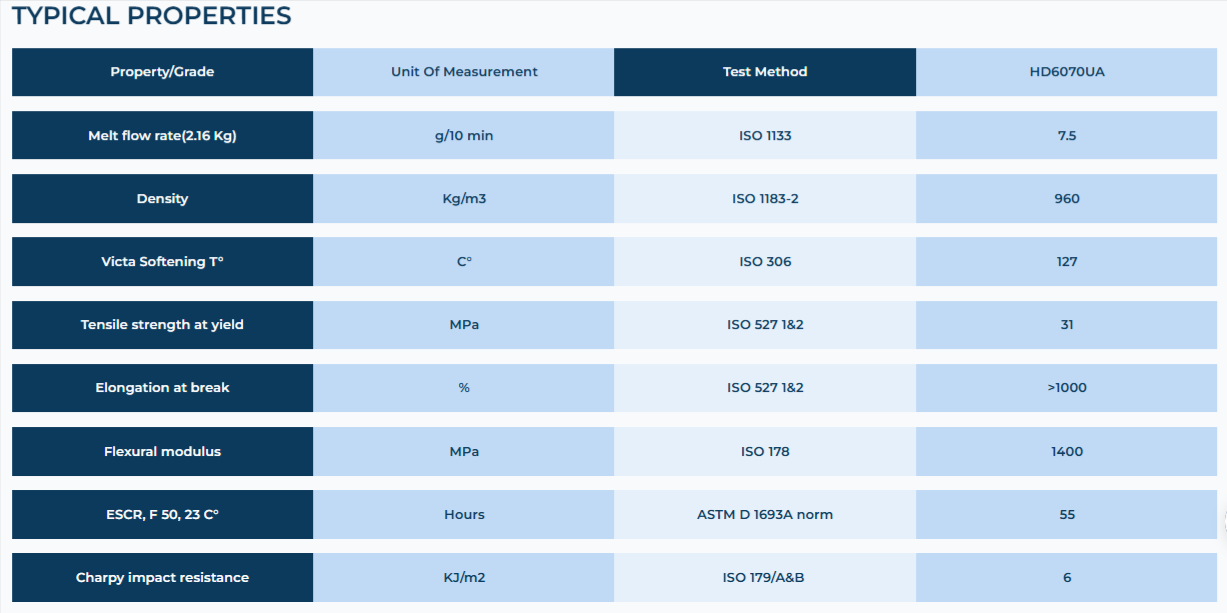

Typical Properties
TYPICAL PROPERTIES
Property/Grade
Unit Of Measurement
Test Method
HD6070UA
Melt flow rate(2.16 Kg)
g/10 min
ISO 1133
7.5
Density
Kg/m3
ISO 1183-2
960
Victa Softening T°
C°
ISO 306
127
Tensile strength at yield
MPa
ISO 527 1&2
31
Elongation at break
%
ISO 527 1&2
>1000
Flexural modulus
MPa
ISO 178
1400
ESCR, F 50, 23 C°
Hours
ASTM D 1693A norm
55
Charpy impact resistance
KJ/m2
ISO 179/A&B
6
HD6070EA
HD 6070 EA is a high density polyethylene grade with a narrow molecular weight distribution, suitable for a wide range of injection moulding applications.
HD 6070 EA has the following characteristics:
Easy processing
High rigidity
Good impact strength
High warpage resistance
Applications:
Crates
Boxes
Seats
Pallets

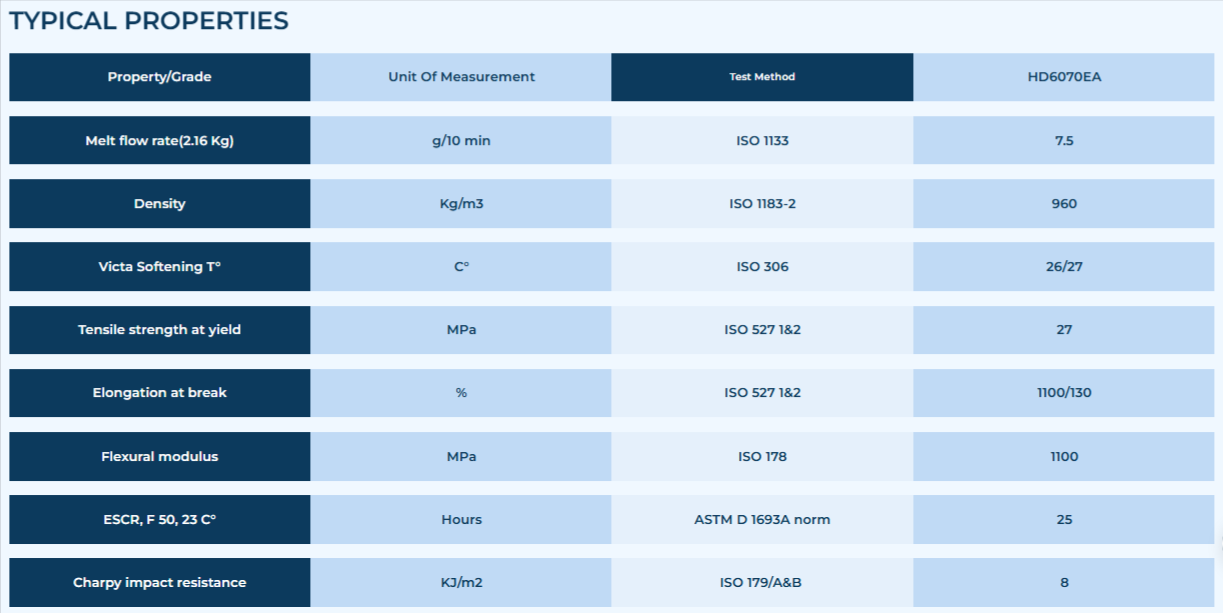

Typical Properties
TYPICAL PROPERTIES
Property/Grade
Unit Of Measurement
Test Method
HD6070EA
Melt flow rate(2.16 Kg)
g/10 min
ISO 1133
7.5
Density
Kg/m3
ISO 1183-2
960
Victa Softening T°
C°
ISO 306
26/27
Tensile strength at yield
MPa
ISO 527 1&2
27
Elongation at break
%
ISO 527 1&2
1100/130
Flexural modulus
MPa
ISO 178
1100
ESCR, F 50, 23 C°
Hours
ASTM D 1693A norm
25
Charpy impact resistance
KJ/m2
ISO 179/A&B
8
HD5211EA
HD 5211 EA is an easy flow high density polyethylene copolymer grade with a narrow molecular weight distriuton, suitable for thin wall injection moulding applications.
HD 5211 EA has the following characteristics:
Good flow
High warpage resistance
Suitable for fast cycling applications
Applications:
Housewares
Thin walled food containers
PET bottle cup

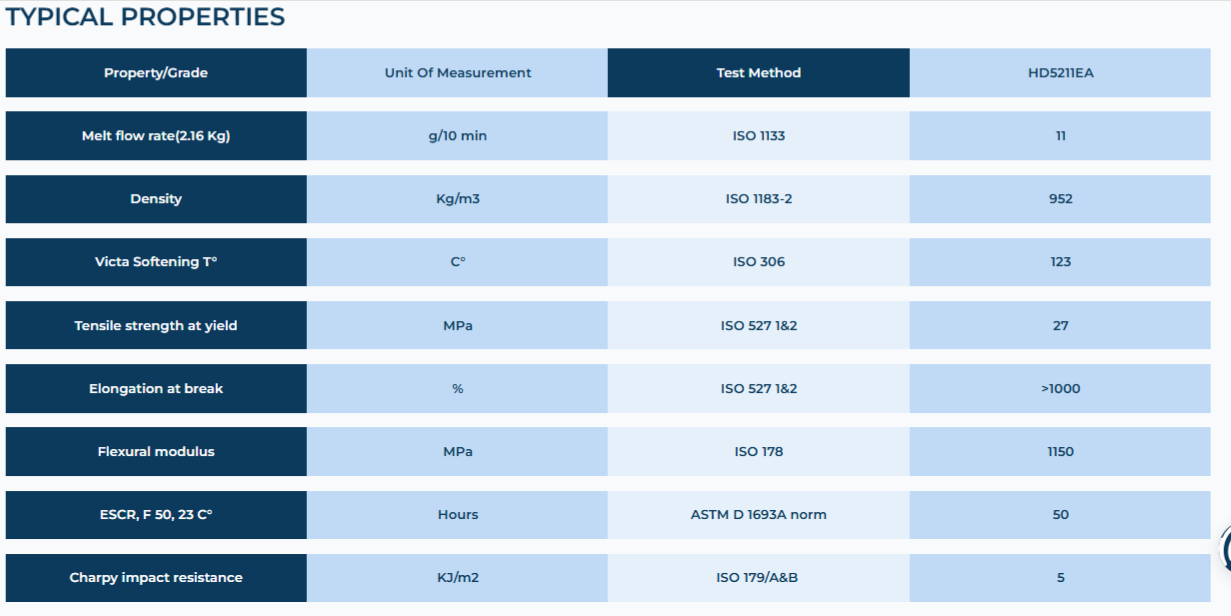

Typical Properties
TYPICAL PROPERTIES
Property/Grade
Unit Of Measurement
Test Method
HD5211EA
Melt flow rate(2.16 Kg)
g/10 min
ISO 1133
11
Density
Kg/m3
ISO 1183-2
952
Victa Softening T°
C°
ISO 306
123
Tensile strength at yield
MPa
ISO 527 1&2
27
Elongation at break
%
ISO 527 1&2
>1000
Flexural modulus
MPa
ISO 178
1150
ESCR, F 50, 23 C°
Hours
ASTM D 1693A norm
50
Charpy impact resistance
KJ/m2
ISO 179/A&B
5
HD5218EA
HD 5211 EA is an easy flow high density polyethylene copolymer grade with a narrow molecular weight distriuton, suitable for thin wall injection moulding applications.
HD 5211 EA has the following characteristics:
Good flow
High warpage resistance
Suitable for fast cycling applications
Applications:
Housewares
Thin walled food containers
PET bottle cup

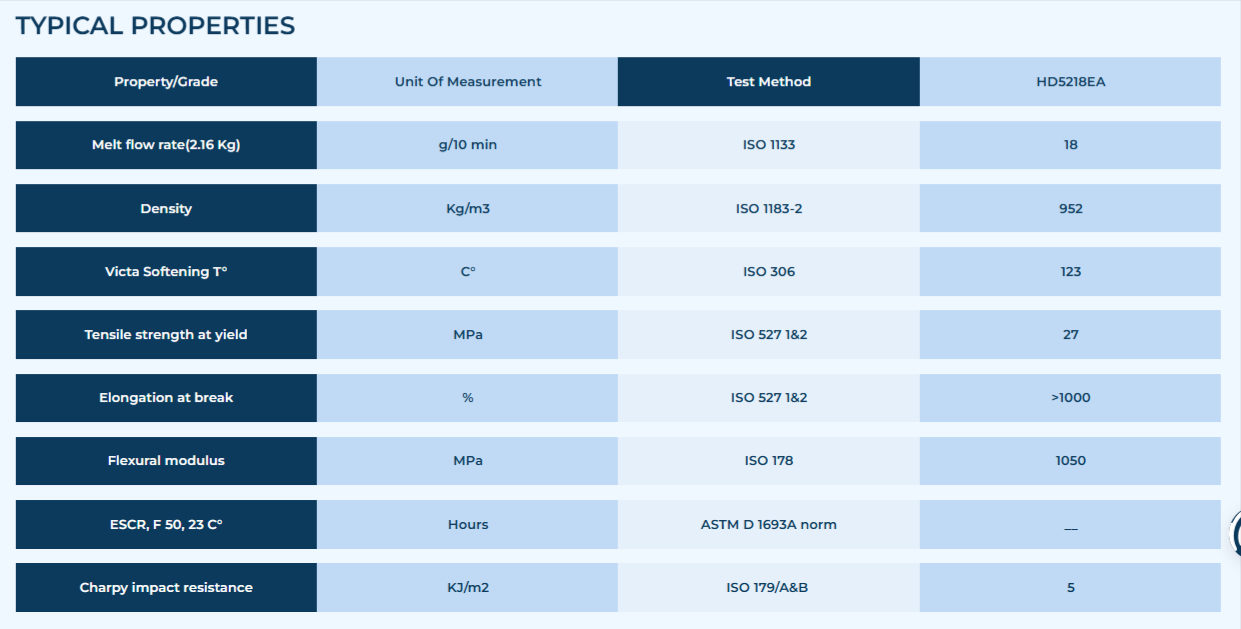

Typical Properties
TYPICAL PROPERTIES
Property/Grade
Unit Of Measurement
Test Method
HD5218EA
Melt flow rate(2.16 Kg)
g/10 min
ISO 1133
18
Density
Kg/m3
ISO 1183-2
952
Victa Softening T°
C°
ISO 306
123
Tensile strength at yield
MPa
ISO 527 1&2
27
Elongation at break
%
ISO 527 1&2
>1000
Flexural modulus
MPa
ISO 178
1050
ESCR, F 50, 23 C°
Hours
ASTM D 1693A norm
__
Charpy impact resistance
KJ/m2
ISO 179/A&B
5

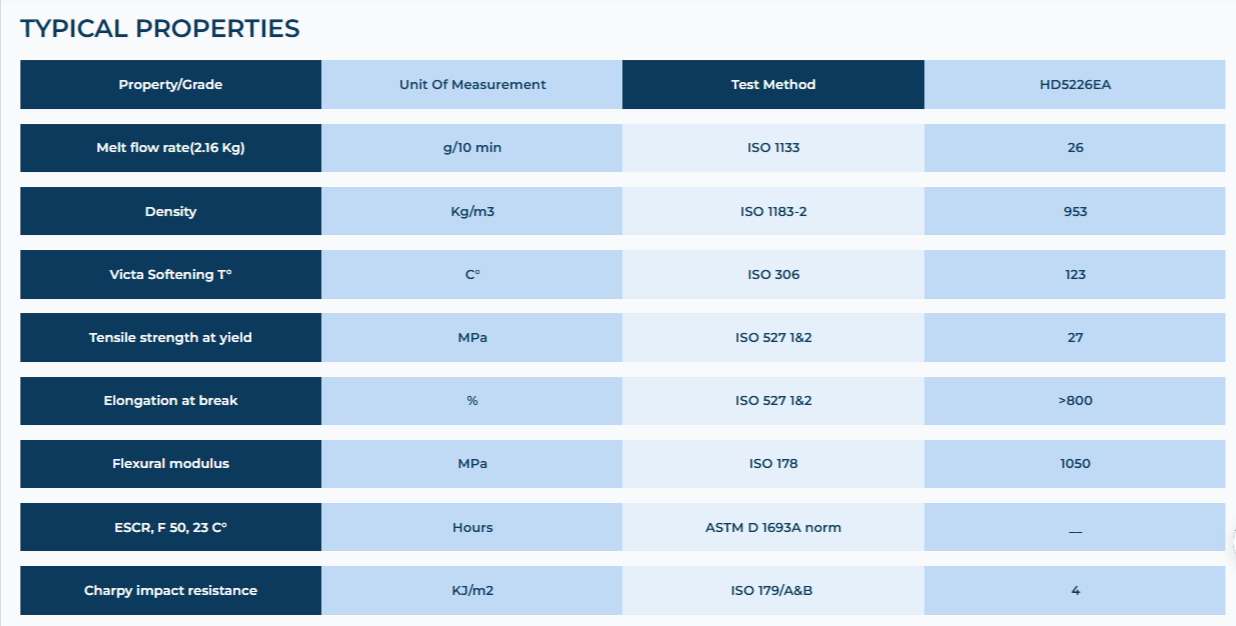

HD5226EA
HD 5226 EA is an easy flow high density polyethylene copolymer grade with a narrow molecular weight distriuton, suitable for thin wall injection moulding applications.
HD 5226 EA has the following characteristics:
High flow
High warpage resistance
Suitable for fast cycling applications
Applications:
Housewares
Thin walled food containers
PET bottle cup
